Dropdown

String selection control with a configurable list of options

A Dropdown presents the operator with a fixed list of string options. When the operator selects an item, Blueprint receives the selected string through a bound event.

---

Configuration

Dropdowns are declared inside UICategories on the xrlive_UIpanel component. Set Type to Xrlive Dropdown and fill in the fields below.

Field	Type	Description
Name	String	Unique ID of the control. Must match exactly (case and spaces) when referenced in Blueprint.
Tooltip	String	Optional helper text shown to the operator on hover.
Dropdown Options	Array of String	The list of selectable options. Each entry is a string typed manually. Add as many options as needed.
Selected Item	String	The option that is active when the visual loads. Must match one of the entries in Dropdown Options exactly — same casing, same spaces.

If Selected Item is left empty or does not match any entry in Dropdown Options, the dropdown will start with no selection at runtime. Always verify that the value is an exact match of one of the declared options.

---

Blueprint API

Call Find Control by Name on the xrlive_UIpanel reference, passing the dropdown’s Name. Feed the Return Value into Bind Event to On Dropdown Selection. Create a Custom Event and connect it to the Event pin.

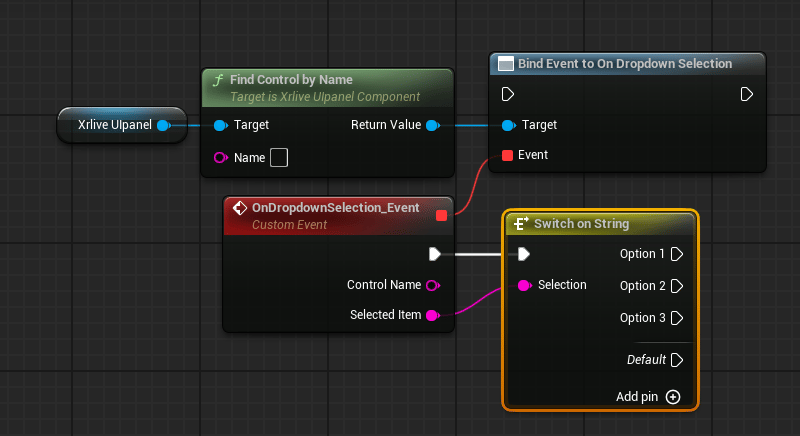

Dropdown wiring — Find Control by Name feeds Bind Event to On Dropdown Selection; Selected Item is routed into a Switch on String to branch per option

The custom event exposes two output pins:

Pin	Type	Description
Control Name	String	The name of the dropdown that fired the event. Useful when one event handles multiple dropdowns.
Selected Item	String	The string value of the option the operator selected.

Each option in a dropdown typically drives a different behavior, so it is common to route Selected Item into a Switch on String node and handle each case in its own branch. This is a recommendation, not a requirement — how the selected value is consumed is entirely up to the developer.

---

Populating options at runtime

If the list of options needs to be built dynamically — for example, from a data table or an external source — you can populate the dropdown at runtime using Set Dropdown Options By Name instead of, or in addition to, the static Dropdown Options array in UICategories.

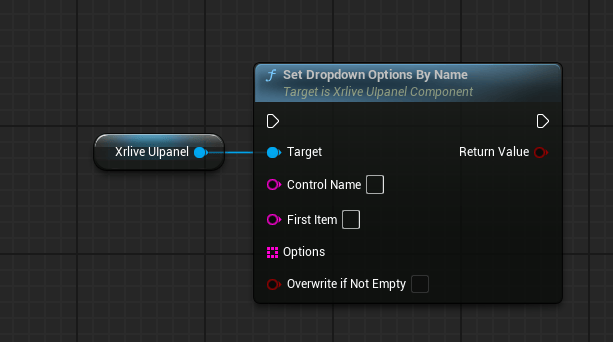

Set Dropdown Options By Name — populates the dropdown list at runtime

Pin	Type	Description
Control Name	String	The name of the dropdown to populate. Must match the control’s Name field exactly.
First Item	String	The option that will be selected by default once the list is applied.
Options	Array of String	The full list of options to load into the dropdown.
Overwrite if Not Empty	Bool	When true, the runtime list replaces any options already declared in UICategories. When false, the static list in UICategories takes priority and the runtime list is ignored if the dropdown already has options.
