Plugin & Scene Setup

Create BP_Settings, add the Cube mesh, and configure the xrlive_UIpanel component

With the project, plugin, and map in place, this module walks through creating the core actor that drives your visual — BP_Settings — adding the shape mesh to it, and fully configuring the xrlive_UIpanel component that connects your visual to the xRLive operator system.

1. Create BP_Settings

In the Content Browser, navigate to your plugin’s Blueprints folder (Plugins > MyFirstVisual Content > Blueprints). Right-click in the empty area and choose Blueprint Class.

In the Pick Parent Class dialog, click All Classes at the bottom and search for XRLiveActor. Select it and click Select.

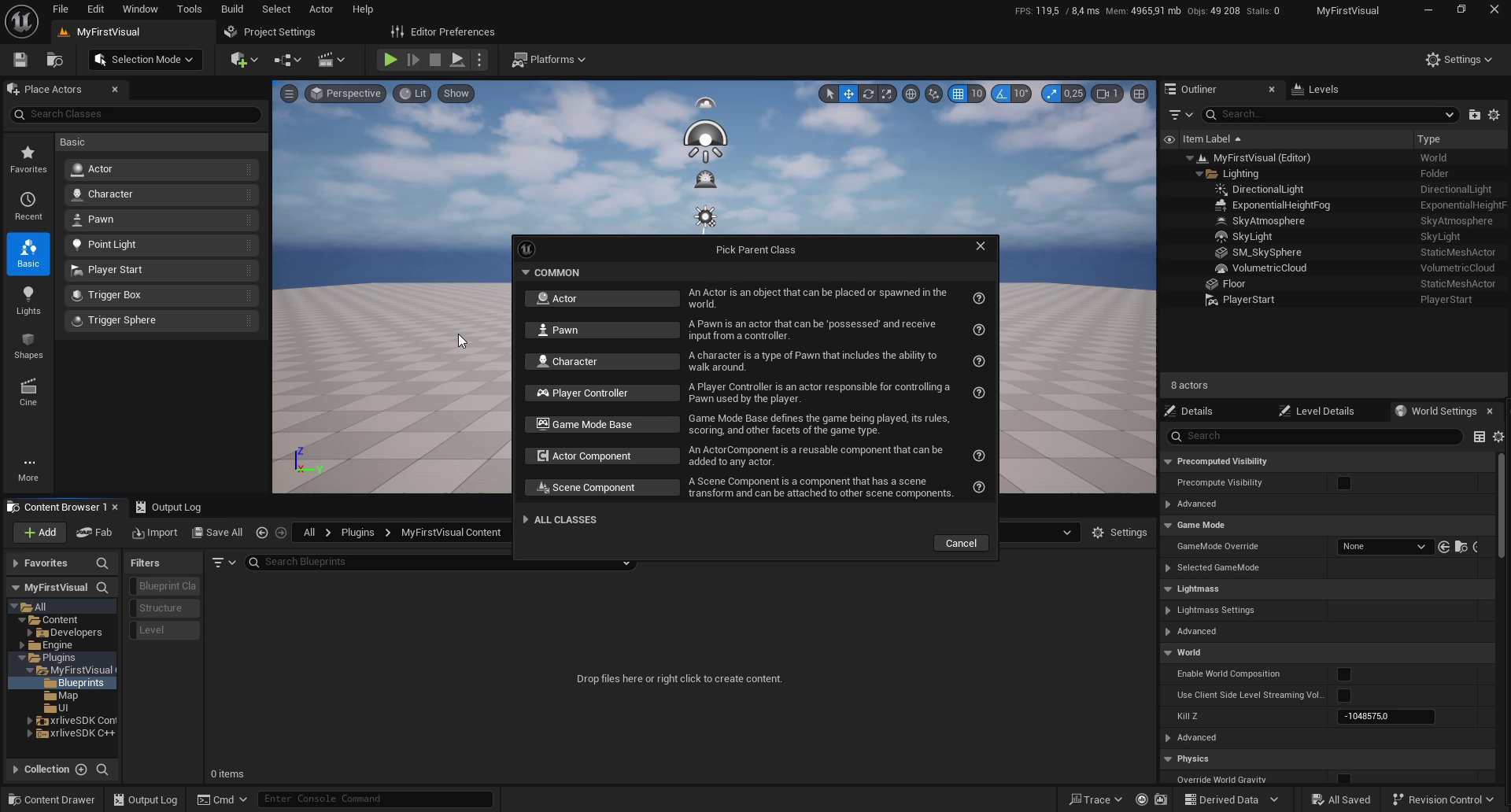

Pick Parent Class dialog — search for XRLiveActor and select it as the base class

Name the new Blueprint BP_Settings. This is the actor that will hold all xRLive SDK components and drive the entire visual.

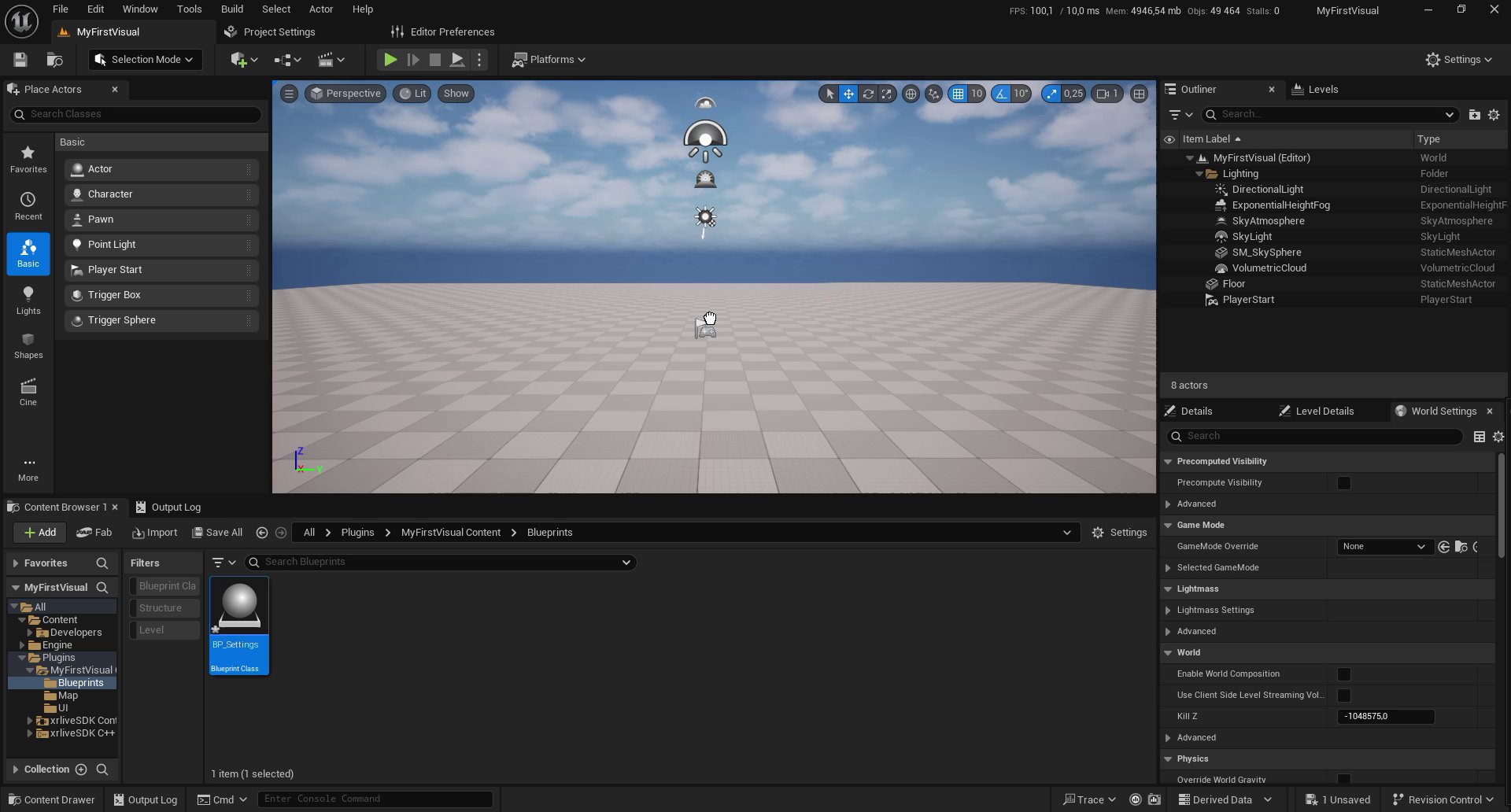

BP_Settings Blueprint created in the Blueprints folder

Drag BP_Settings from the Content Browser into the level viewport to place it in the scene.

2. Add the Cube component

For this tutorial we use a Cube Static Mesh, but the shape component can be replaced by any Unreal Engine asset type — including but not limited to custom Static Meshes, Skeletal Meshes, Instanced Static Meshes, Niagara Particle Systems, lights, audio components, and more. The xRLive operator control system works the same regardless of what is in the scene.

Double-click BP_Settings to open the Blueprint editor. In the Components panel on the left, click + Add and choose Cube (or Static Mesh if you prefer to assign the mesh manually).

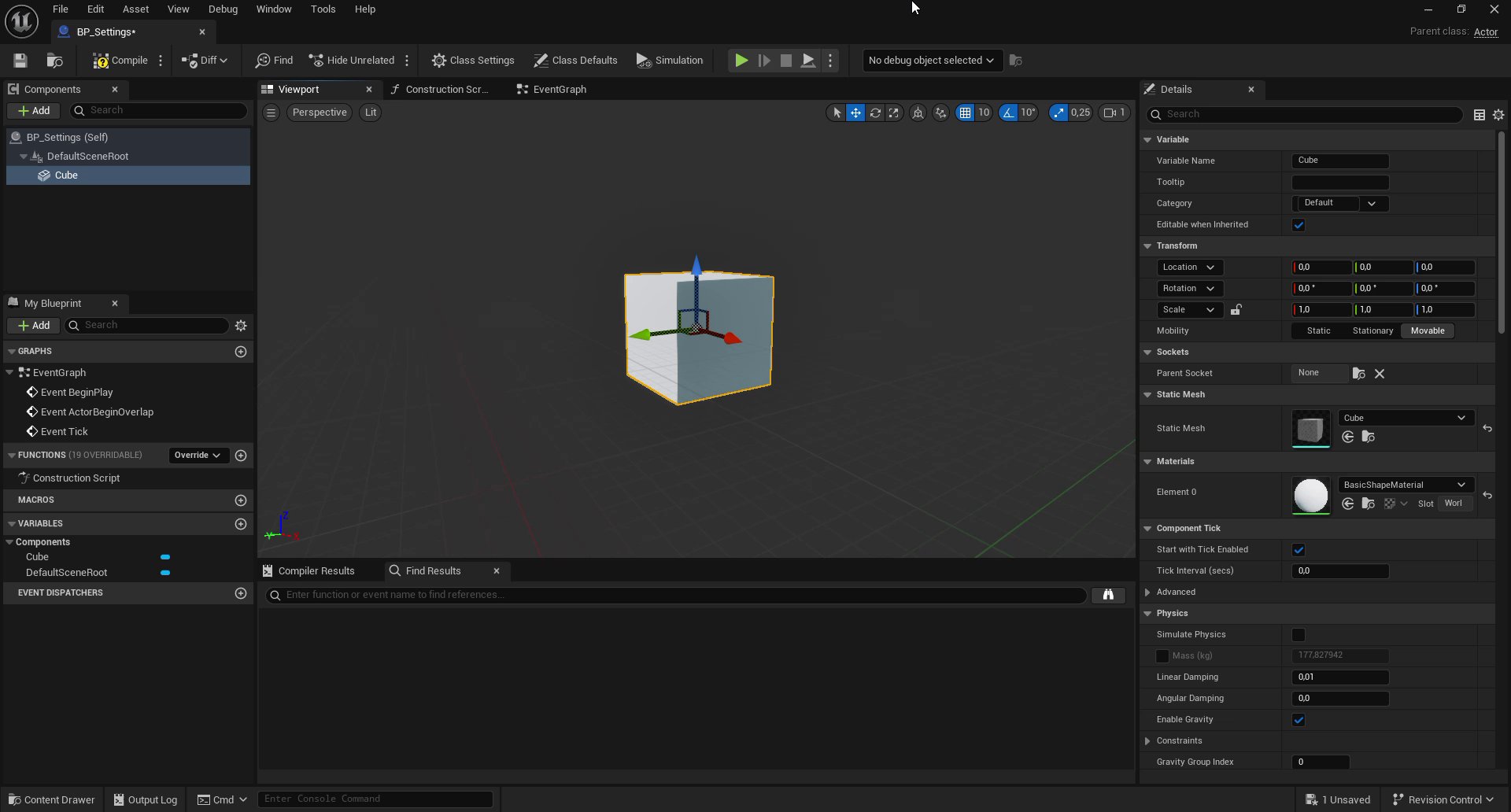

BP_Settings Blueprint editor — Cube Static Mesh component added and selected

The Cube is the shape the operator will control. Its transform, color, and visibility will all be driven by operator controls in later modules.

3. Add the xrlive_UIpanel component

Still in the Components panel, click + Add again and search for xrlive_UIpanel. Select it to add it to the actor.

With xrlive_UIpanel selected in the Components panel, look at the Details panel on the right — it contains three sections that configure how your visual connects to the xRLive system.

xrlive_UIpanel Details panel — three sections: Widgets, Camera, and Xrlive UI Settings

---

Widgets section

The Widgets section sets the four widget classes that xRLive instantiates when your visual runs. Each class reference has a specific role:

Field	Class to assign	Purpose
MBP Viewport Class Ref	xRLive_Viewport	Visual replica of the game window. Renders xRLive alert widgets and any custom widgets your visual builds.
Custom Panel Widget Class	xRLive_CustomPanel	General container for all operator controls. This is the widget that constructs the entire operator control system.
MBP Category Container Class	xRLive_CategoryContainer	Container that organizes operator controls into categories inside the operator panel.
MBP Widget Controller Class	xRLive_WidgetController	Controller widget for individual control elements: Slider, Button, Color Picker, Checkbox, Dropdown, Text Box, and Back Button.

Set each field by clicking its dropdown and selecting the corresponding class.

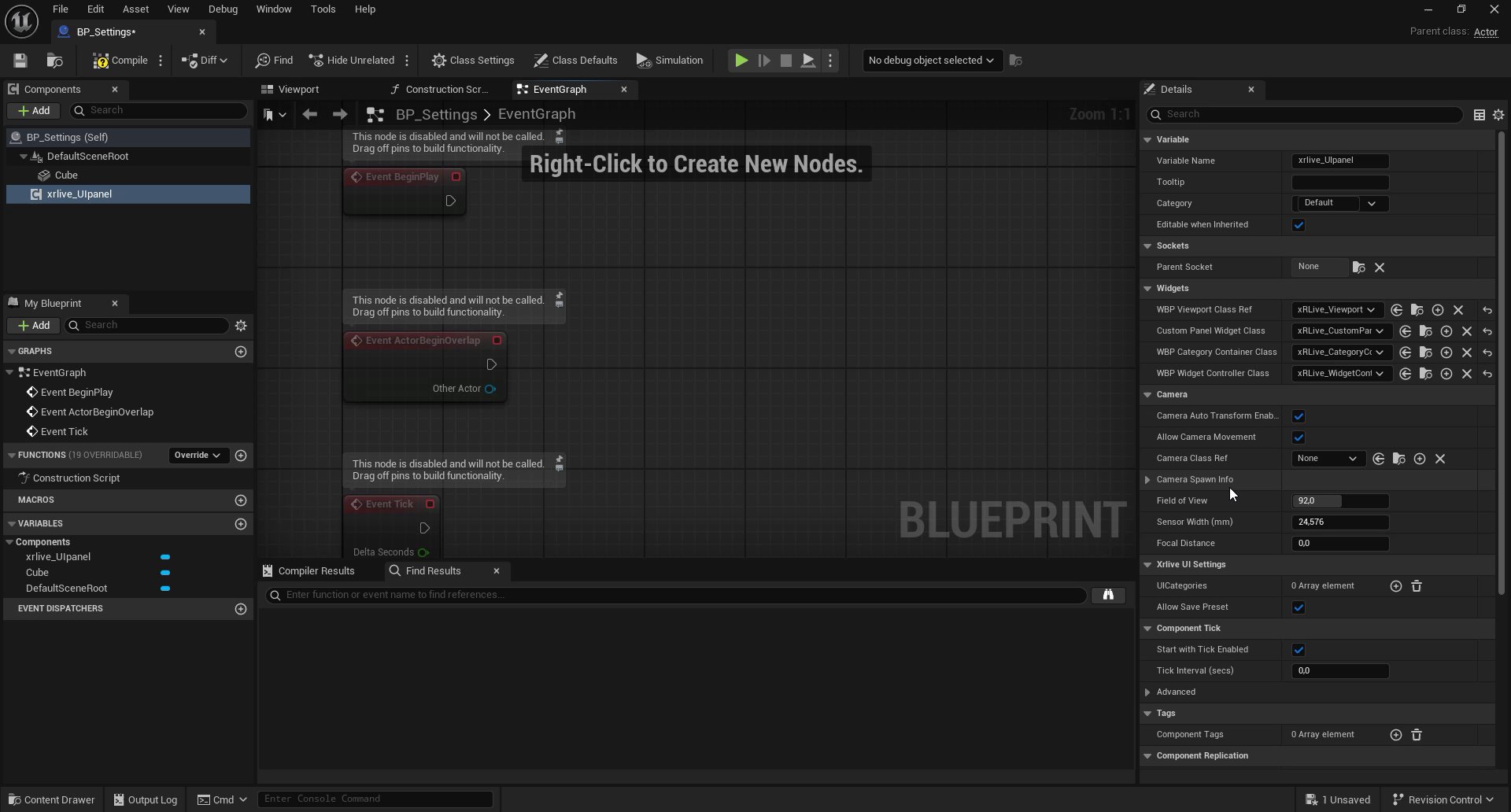

Widgets section fully configured — all four class references assigned

When testing inside the Unreal editor, the Viewport widget and the CustomPanel widget both render in the game window without separation — all widgets share the same game viewport. If the Viewport widget visually overlaps the operator panel, you can configure a key toggle to control its visibility at runtime. This is covered in Test in the Editor.

---

Camera section

The Camera section configures the xRLive camera actor that the system uses to correctly render viewport-based features.

Field	Value / Description
Camera Auto Transform Enabled	When enabled, the camera’s position and rotation are automatically saved in the preset JSON each session. Disable this for visuals that manage their own camera state.
Allow Camera Movement	Enables or disables operator control over camera movement. Disable for visuals with a fixed camera or when the camera transform is fully driven by operator controls.
Camera Class Ref	Set this to xRLive_Camera. This is the pawn xRLive possesses to render viewport content correctly.
Camera Spawn Info	The initial position and rotation of the camera. Set Spawn Location to 0, 0, 92 to place the camera at a standard operator eye height.
Field of View	Adjusts the camera lens angle. Default is 92.0.
Sensor Width (mm)	Physical sensor width for lens simulation. Default is 24.576.
Focal Distance	Distance at which the lens focuses. Default is 0.0 (no depth-of-field effect).

You can also adjust FOV, Sensor Width, and Focal Distance at runtime from Blueprint using the Apply Camera Settings node. See Camera Settings for the full reference.

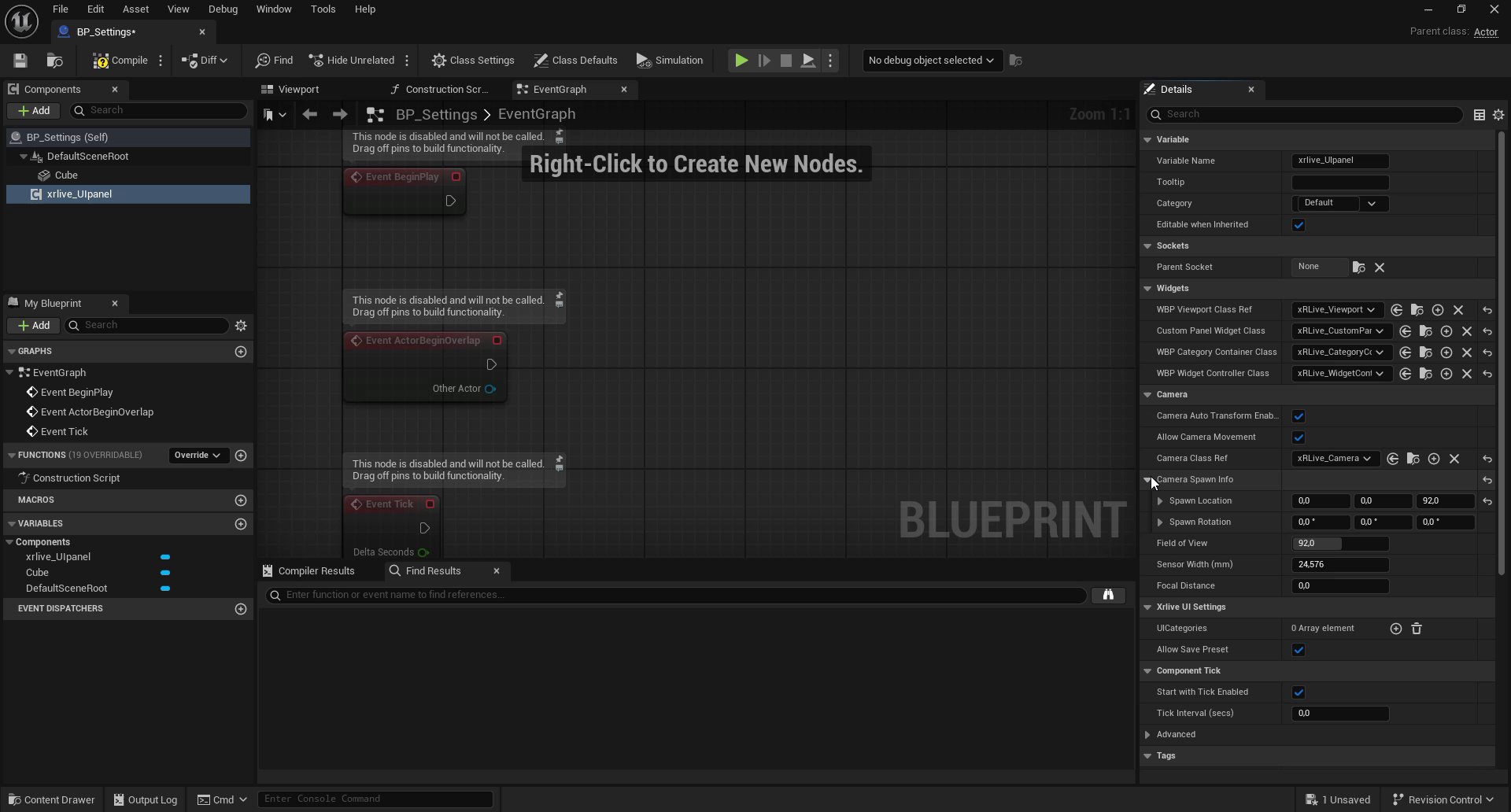

Camera section configured — xRLive_Camera assigned and Spawn Location set to 0, 0, 92

---

Xrlive UI Settings section

The Xrlive UI Settings section has two responsibilities:

• UICategories — this array is where you declare the operator control categories and their controls. It is empty for now; you will fill it in the next module (Define the Control List).
  • Allow Save Preset — when enabled, xRLive builds and saves a JSON preset file for this visual after each session. Disable this for visuals that do not use the preset system, such as gameshows or Audience visuals that manage their own state independently.

Leave Allow Save Preset enabled for this tutorial. The shape visual uses presets to remember operator control positions between sessions.

---

What you have now

BP_Settings is fully configured with:

• A Cube Static Mesh component that the operator controls will manipulate
• An xrlive_UIpanel component with all four widget class references assigned, the xRLive_Camera actor class set, the camera positioned at 0, 0, 92, and preset saving enabled

In the next module you will declare the operator control categories and controls inside UICategories.
